Toolbar Plugin

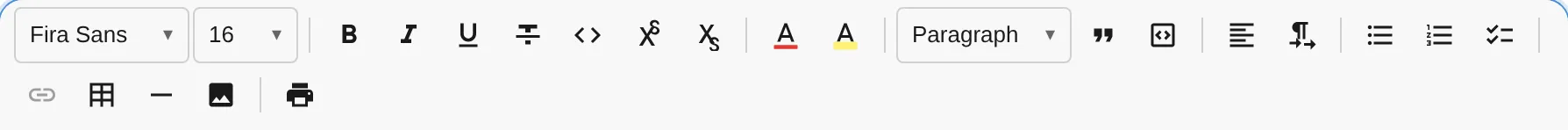

The ToolbarPlugin renders the editor toolbar UI. It is automatically created when you use the toolbar configuration option — you don’t need to instantiate it manually.

Automatic Setup

const editor = await createEditor({
  toolbar: [
    [new TextFormattingPlugin()],
    [new HeadingPlugin()],
  ],
});
// ToolbarPlugin is automatically created and registered

Each inner array becomes a visual toolbar group separated by dividers.

Manual Setup

For advanced use cases, you can create the ToolbarPlugin manually:

import { ToolbarPlugin } from '@notectl/core/plugins/toolbar';

const toolbar = new ToolbarPlugin({
  groups: [['text-formatting'], ['heading']],
});

const editor = await createEditor({
  plugins: [
    new TextFormattingPlugin(),
    new HeadingPlugin(),
    toolbar,
  ],
});

Layout Configuration

interface ToolbarLayoutConfig {
  /** Plugin ID groups — each inner array is a visual toolbar group */
  readonly groups: ReadonlyArray<ReadonlyArray<string>>;
  /** Controls responsive overflow. Default: ToolbarOverflowBehavior.BurgerMenu */
  readonly overflow?: ToolbarOverflowBehavior;
}

The overflow field controls how items behave when the toolbar is too narrow. See the Toolbar Configuration guide for the available modes (BurgerMenu, Flow, None).

Toolbar Items

Plugins register toolbar items via context.registerToolbarItem():

interface ToolbarItemBase {
  /** Unique identifier. */
  readonly id: string;
  /** Logical group for auto-grouping (e.g., 'format', 'block'). */
  readonly group: string;
  /** HTML string for the button icon. */
  readonly icon: string;
  /** Accessible label for screen readers. */
  readonly label: string;
  /** Tooltip text shown on hover. */
  readonly tooltip?: string;
  /** Command to execute on click. */
  readonly command: string;
  /** Optional dynamic icon callback. When provided, the icon updates on every state change. */
  getIcon?(state: EditorState): string;
  /** Returns true when the item should appear active/pressed. */
  isActive?(state: EditorState): boolean;
  /** Returns true when the item should be enabled. */
  isEnabled?(state: EditorState): boolean;
}

// Discriminated union — popupType determines which extra fields are available:
interface ToolbarItemGridPicker extends ToolbarItemBase {
  readonly popupType: 'gridPicker';
  readonly popupConfig: GridPickerConfig;
}
interface ToolbarItemDropdown extends ToolbarItemBase {
  readonly popupType: 'dropdown';
  readonly popupConfig: DropdownConfig;
}
interface ToolbarItemCustomPopup extends ToolbarItemBase {
  readonly popupType: 'custom';
  /** Called to render arbitrary popup content. Use onClose() to dismiss. */
  renderPopup(container: HTMLElement, context: PluginContext, onClose: (options?: PopupCloseOptions) => void): void;
}
interface ToolbarItemNoPopup extends ToolbarItemBase {
  readonly popupType?: undefined;
}

interface ToolbarItemCombobox extends Omit<ToolbarItemBase, 'icon'> {
  readonly popupType: 'combobox';
  /** Optional icon — combobox items typically display a text label instead. */
  readonly icon?: string;
  /** Pure function returning the current label text. Called on every state change. */
  getLabel(state: EditorState): string;
  /** Renders the popup content when the combobox is opened. */
  renderPopup(container: HTMLElement, context: PluginContext, onClose: (options?: PopupCloseOptions) => void): void;
}

type ToolbarItem =
  | ToolbarItemNoPopup
  | ToolbarItemGridPicker
  | ToolbarItemDropdown
  | ToolbarItemCustomPopup
  | ToolbarItemCombobox;

Popup Types

Type	Description	Used By
dropdown	Vertical list of options	HeadingPlugin, AlignmentPlugin
gridPicker	2D grid for dimension selection	TablePlugin
custom	Full control over popup rendering	TextColorPlugin, HighlightPlugin, LinkPlugin
combobox	Text label with listbox popup (role="combobox", aria-haspopup="listbox")	FontPlugin, FontSizePlugin

Runtime API

getOverflowBehavior(): ToolbarOverflowBehavior

Returns the current overflow behavior mode.

setOverflowBehavior(behavior: ToolbarOverflowBehavior): void

Switches the overflow behavior at runtime. Triggers an immediate re-layout.

import { ToolbarOverflowBehavior } from '@notectl/core/plugins/toolbar';

// Switch to flow mode at runtime
toolbarPlugin.setOverflowBehavior(ToolbarOverflowBehavior.Flow);

ToolbarService

The toolbar exposes a typed service for programmatic control:

import { ToolbarServiceKey } from '@notectl/core/plugins/toolbar';

const toolbarService = context.getService(ToolbarServiceKey);

// Force refresh of all button states
toolbarService.refresh();

interface ToolbarServiceAPI {
  /** Re-reads isActive/isEnabled from state and updates all buttons. */
  refresh(): void;
  /** Closes any open toolbar popup (font picker, color picker, etc.). */
  closePopup(): void;
}

Read-Only Mode

When the editor enters read-only mode, the toolbar automatically hides itself. When read-only mode is disabled, the toolbar reappears.

Button States

The toolbar automatically updates button states on every state change:

• Active (aria-pressed="true" + part="toolbar-button toolbar-button-active") — when isActive() returns true (e.g., bold button when cursor is in bold text). The modifier part is kept in sync with aria-pressed and is the recommended way to style the active state from outside the shadow root.
• Disabled (aria-disabled="true") — when isEnabled() returns false
• Popup open — visual indicator when a popup is visible

Theming

The toolbar participates in the three-tier theming cascade. The existing --notectl-toolbar-bg and --notectl-toolbar-border are theme-driven; new button-level tokens are CSS-only:

notectl-editor {
  --notectl-toolbar-button-bg: #fafafa;
  --notectl-toolbar-button-hover-bg: #f0f0f0;
  --notectl-toolbar-button-active-bg: #6366f1;
  --notectl-toolbar-button-active-fg: #ffffff;
}

Token	Default fallback
--notectl-toolbar-button-bg	transparent
--notectl-toolbar-button-fg	var(--notectl-fg)
--notectl-toolbar-button-hover-bg	var(--notectl-hover-bg)
--notectl-toolbar-button-active-bg	var(--notectl-active-bg)
--notectl-toolbar-button-active-fg	var(--notectl-primary-fg)

Shadow Parts

The toolbar exposes structural parts so consumers can target it via ::part() without piercing the shadow DOM:

Part	Element	Notes
toolbar	Toolbar root
toolbar-group	Group wrapper around a logical cluster of buttons	Real flex container — padding, background, border apply directly
toolbar-button	Any toolbar button
toolbar-button + toolbar-button-active	Active button	Modifier part synced with aria-pressed
toolbar-button + toolbar-overflow-button	The “more” button in burger-menu mode
toolbar-divider	Group separator

Example — pill-shaped buttons with a custom active gradient:

notectl-editor::part(toolbar-button) {
  border-radius: 9999px;
}
notectl-editor::part(toolbar-button-active) {
  background: linear-gradient(135deg, #6366f1, #8b5cf6);
  color: #ffffff;
}

Example — tint each group with a soft background and rounded corners:

notectl-editor::part(toolbar-group) {
  background: var(--my-group-bg);
  border-radius: 6px;
  padding: 0 4px;
}

Group-aware overflow

In ToolbarOverflowBehavior.BurgerMenu mode (the default), overflow is measured at the group level: when any button in a group would not fit, the entire group moves into the burger menu so logical clusters stay together. Standalone buttons appended directly to the toolbar (without a group wrapper) are treated as single-button groups.

Accessible group labels

The internal ToolbarLayoutConfig accepts an object form per group so groups can carry an accessible name. When a label is provided, the wrapper additionally receives role="group" and aria-label:

new ToolbarPlugin({
  groups: [
    { plugins: ['text-formatting'], label: 'Text formatting' },
    { plugins: ['heading'], label: 'Headings' },
    ['lists'], // unlabeled — wrapper stays role-less, no aria-label
  ],
});

The same object form is accepted at the editor level via createEditor({ toolbar: { groups: [...] } }) where each entry is either a ReadonlyArray<Plugin> or { plugins: ReadonlyArray<Plugin>; label?: string }.

When no label is set, the wrapper carries only part="toolbar-group" for styling and is not announced as a group by assistive technology — this matches the W3C ARIA APG toolbar example, where unlabeled sub-groups stay purely structural.

Accessibility

Toolbar

The toolbar element has:

• role="toolbar" for screen readers
• Localized aria-label (defaults to “Formatting options” in English)
• Individual buttons with aria-pressed and aria-label
• Tooltip on hover (500ms delay)

Keyboard navigation (roving tabindex):

Key	Action
ArrowRight	Move focus to next button
ArrowLeft	Move focus to previous button
Home	Move focus to first enabled button
End	Move focus to last enabled button
Enter / Space	Activate the focused button

Overflow Dropdown

When the “…” overflow button is visible:

• The button has aria-haspopup="true" and aria-expanded toggled on open/close
• Localized aria-label (defaults to “More tools” in English)
• The dropdown menu has role="menu" with role="menuitem" children
• Group separators use role="separator"

Dropdown keyboard navigation:

Key	Action
ArrowDown	Move focus to next menu item
ArrowUp	Move focus to previous menu item
Enter / Space	Activate the focused item
Escape / Tab	Close dropdown, return focus to overflow button
